🛈 Important

You must license MAX Pay Global prior to performing a payment.  Failure to have the correct and date-valid license will result in (credit card) payments not being processed.

This topic addresses the process and technical aspects of licensing.  For commercial queries, please contact your Retail Realm partner account manager.

License groups

MAX Pay Global is licensed – meaning that it requires a license in order to function correctly.  There are three types of license and three types of payment groups

Types

  • MOTO
  • Online
  • Retail

MOTO

Payments (Authorization and Capture) taking place in the Dynamics 365 headquarters (AOS) require a MOTO license

Online

Payments taking place (Authorization and Capture) taking place in the e-Commerce online storefront channel (CSU) require an online license

Retail

Payments taking place on the Point of sale (hardware station) require a Retail license

Payment Methods (Groups)

  • Card providers (e.g. credit card)
  • Wallet (e.g., an exclusive PayPal connector)
  • Gift card (e.g., an exclusive Gift Card provider)

Depending upon the Connector, whether it is a Credit card provider, Wallet provider or Gift card provider, they require the appropriate license type covering the Payment group.  In total, there are nine different license variants (3x3).

Summary


MOTO

Payment services – taking payments at Call center,
Sales order Processing / Accounts Receivable

Licensed per user / process

Online

Taking payments using the

Online Channel(s)

Licensed per Online store

Retail

Taking payments at Retail

Modern POS or Cloud POS

Licensed per Retail POS

register


External e-Commerce

External systems such as an e-Commerce license will also require a license (i.e. an Online license)

How to obtain a license

Please initially contact Retail Realm sales team.  If you already have an open project, please submit a ticket and our licensing department will attend to your request.

Activating the license

You will require your License document (PDF)

Navigate to MAX Pay Global > Setup > License configuration > Payment connector license

  1. Select +New
  2. Select the License type and Payment method (e.g., Retail and Card)
  3. Select Save
  4. Select Activate Online
  5. Paste the Customer number from the PDF into the Customer number field
  6. Paste the License string from the PDF into the Token field
  7. Read and accept the license agreement
  8. Select OK

Applying the license

  1. Navigate to MAX Pay Global > Setup > License configuration > Payment connector license
  2. Select Apply License
  3. Select the appropriate channel corresponding to the license just activated
  4. The license will be propagated to the corresponding Payment services, Online or Hardware profiles (Serial number field)


Applying the license in the above way ensures that all relevant profiles are updated.
If a new profile has been created after the license was initially applied, then there are two options:

  1. Re-apply the license for the given channel following the above procedure
  2. Apply the license on the new profile individually:

Each channel is Applied in a specific way:


Channel

Application method

License serial number

MOTO

Applied to each Payment service
Navigate to:

Accounts receivable > Payments setup > Payment services

Select the respective Payment service and
Select License > Apply

EFT Service > Serial number

Online

Applied to each Online store.
Navigate to:
Online Store > Payment accounts

FastTab > Connector > Select License > Apply

Payment accounts > Connector > Serial number

Retail

Applied to each POS hardware profile
(on the EFT service FastTab).

POS hardware profile > EFT service > Connector > Serial number

To check an individual license

To check the Retail license applied to a single POS hardware profile EFT service Payment connector:

  1. Go to the selected POS hardware profile and under the EFT service FastTab
  2. Under License, Select Check

The license will be displayed including the expiry date.

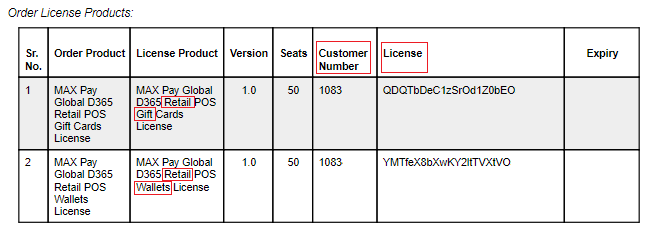

Example PDF

Expiry date

Please make a note of the expiry date.  The expiry date may differ across different licenses.  Production licenses normally last for 12 months and Test/UAT licenses are normally renewed on a one-month basis.
