i Important

This topic applies only when using MAX Essentials to perform the initial setup and configuration.

Introduction

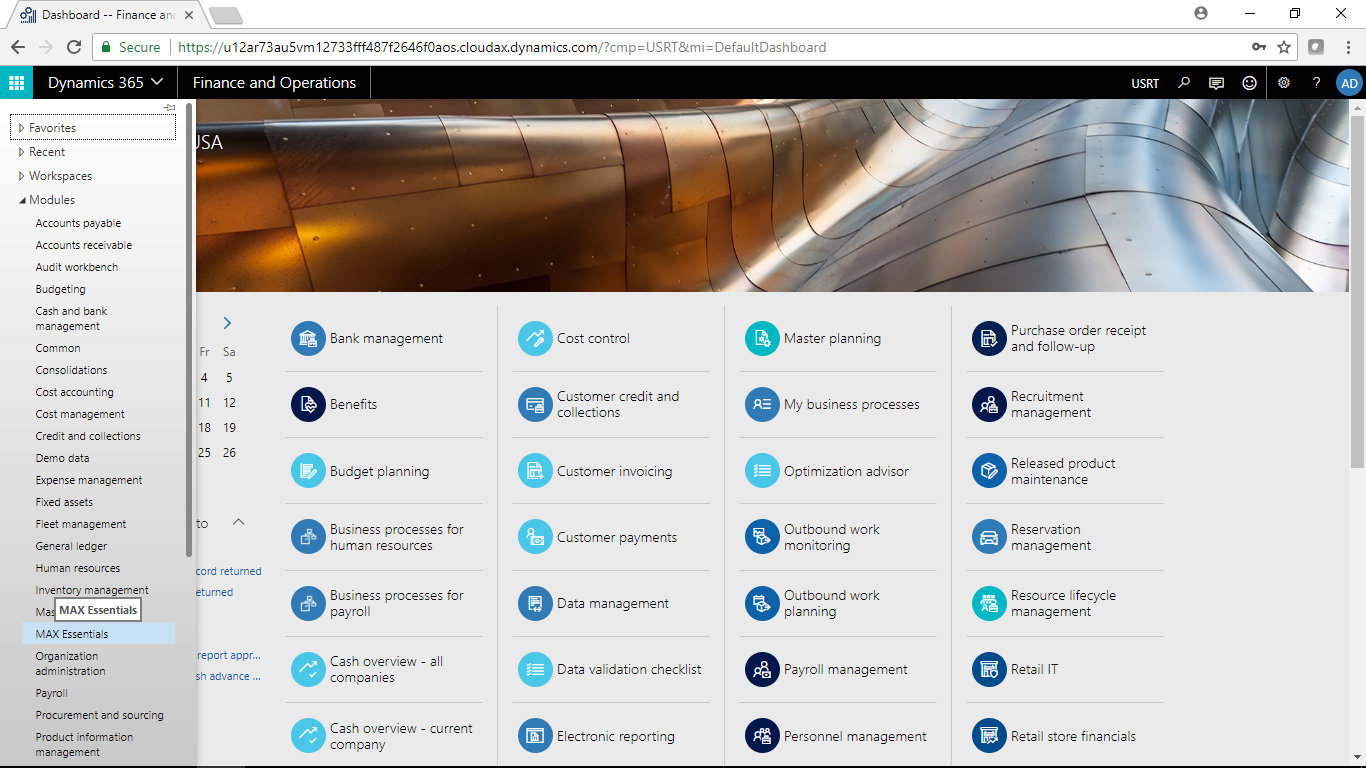

Once you install the AX Deployable package successfully, the MAX Essentials area page will be visible.

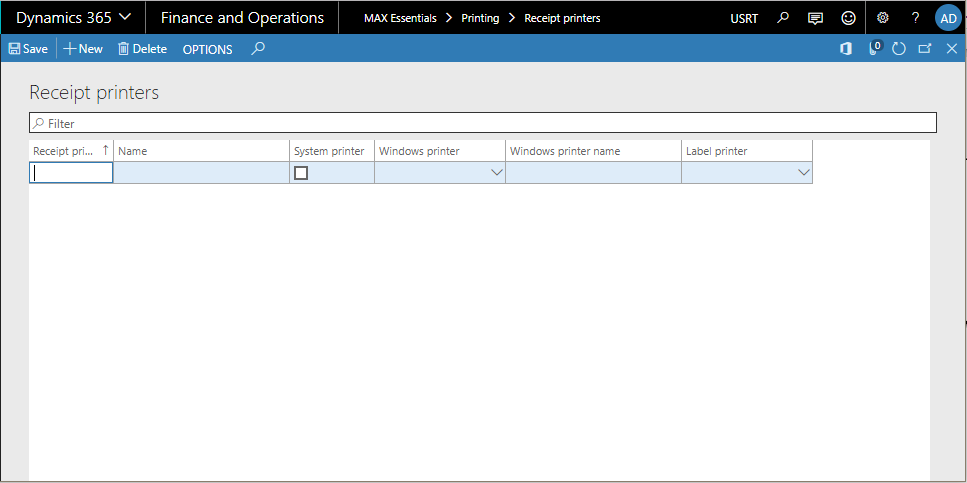

Receipt Printer

Navigate to MAX Essentials > Printing > Receipt Printer

Use this to define a printer for Label printing.

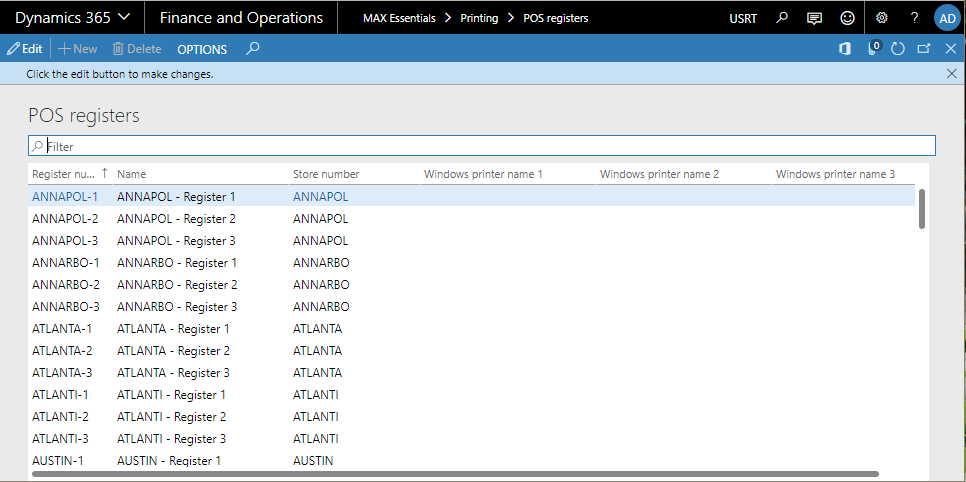

POS Registers

User can setup Printer to register using this. Specify the printer name in Windows printer name 1 or Windows printer name 2 or Windows printer name 3. To do this, go to MAX Essentials > Printing > POS registers.


\


Retail MAX Parameters:

Label

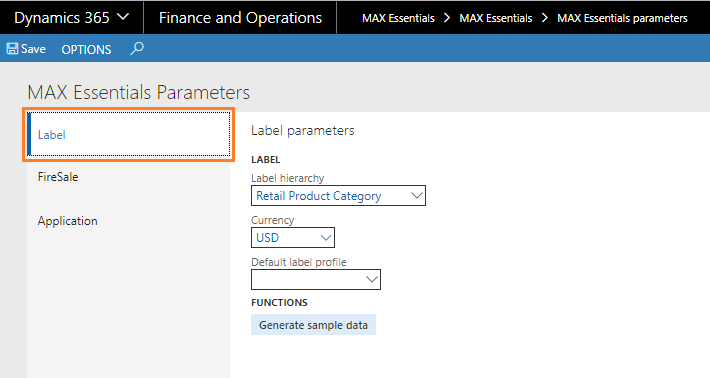

To setup Label Parameter go to MAX Essentials > MAX Essentials > MAX Essentials Parameter >Label


Field

Description

Label hierarchy

User can select Label hierarchy from the list

Currency

User can select Currency from the list

Default label profile

User can select default label profile for store.

Generate sample data

User can generate sample data by clicking this button. It will generate sample label layout for later use.

Note: These Parameter fields are mandatory for Label Designer in MAX Essentials

Application

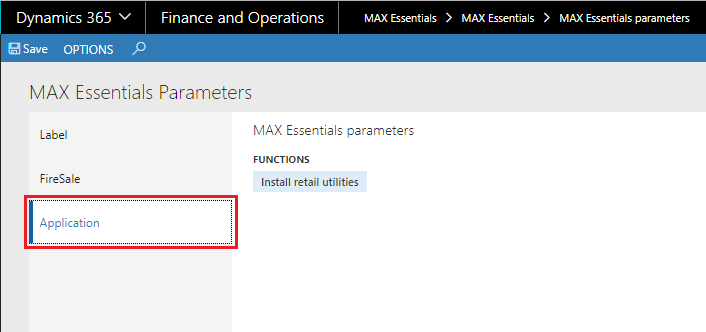

To setup Application Parameter go to MAX Essentials > MAX Essentials > MAX Essentials Parameter > Parameter


Field

Description

Install retail utilities

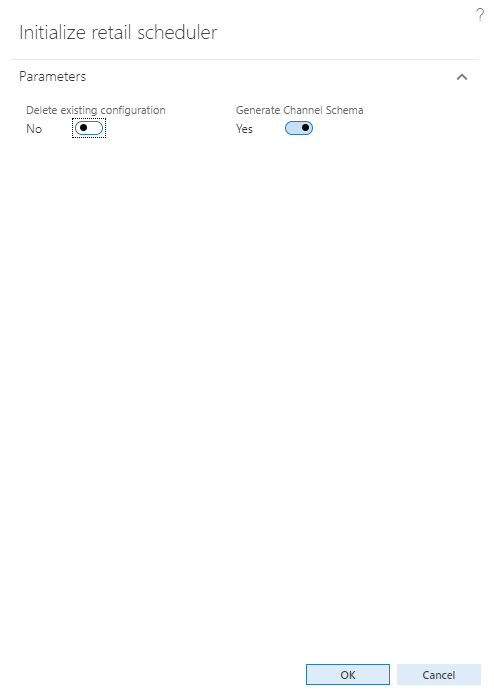

Click on Install retail utilities it will display below screen.


Delete existing configuration:

Yes:

No:

Generate channel schema:

Yes: If set to Yes, it will generate channel schema

No: If set to No, it will not generate channel schema


Click on OK button to process the selected action.

Click on Cancel button to close this form.
